HMI Touch Screen Programming Cable SK 102AS SK 070AS high quality-in Brackets from Home Improvement

Scroll to product details, material & care and sizing

$ 222.00

Add to cart Add to wishlist

Term:

HMI Touch Screen Programming Cable SK-102AS SK-070AS high-quality Details & Specification :

Item Specifications
DIY Supplies Electrical
Model Number SK-102AS SK-070AS
Usage Industrial
Material Metal
is_customized Yes
Standard or Nonstandard Standard
Structure other

HMI Touch Screen Programming Cable SK-102AS SK-070AS high-quality

SK-102AS



Model SK-102AE SK-102AS SA-10.2A
Display size 10.2 in (length: width =16:9)
Resolution 800x480
Color 262,144 colors
The control panel 4-wire high-precision resistive touch panels
Communication ports COM 1 (RS232, RS422, RS485) and COM 2 (RS232, RS422, RS485)
Download USB USB Device There are There are There are
USB port USB Host There are There are Free
Ethernet port Free There are Free
card There are There are Free
Memory 128M FLASH + 64M DDR 128M FLASH + 64M DDR 128M FLASH + 128M DDR2
CPU 32-bit 400MHz RISC 32-bit 400MHz RISC 32-bit 500MHz RISC
Power supply DC:24V(±15%), 15W DC:24V(±15%), 15W DC:24V(±15%), 15W
Power consumption 8W 8W 6W
Working environment temperature -10~65° -10~65° -10~65°
Operating humidity 10~90%RH (no condensation) 10~90%RH (no condensation) 10~90%RH (no condensation)
Overall dimensions 266×208×40(mm) 266×208×40(mm) 275×210×44(mm)
Mounting hole dimensions 261×203(mm) 261×203(mm) 259×201(mm)
Weight About 2 Kg About 2 Kg About 2 Kg
Configuration software SKWorkshop SKWorkshop SamDraw

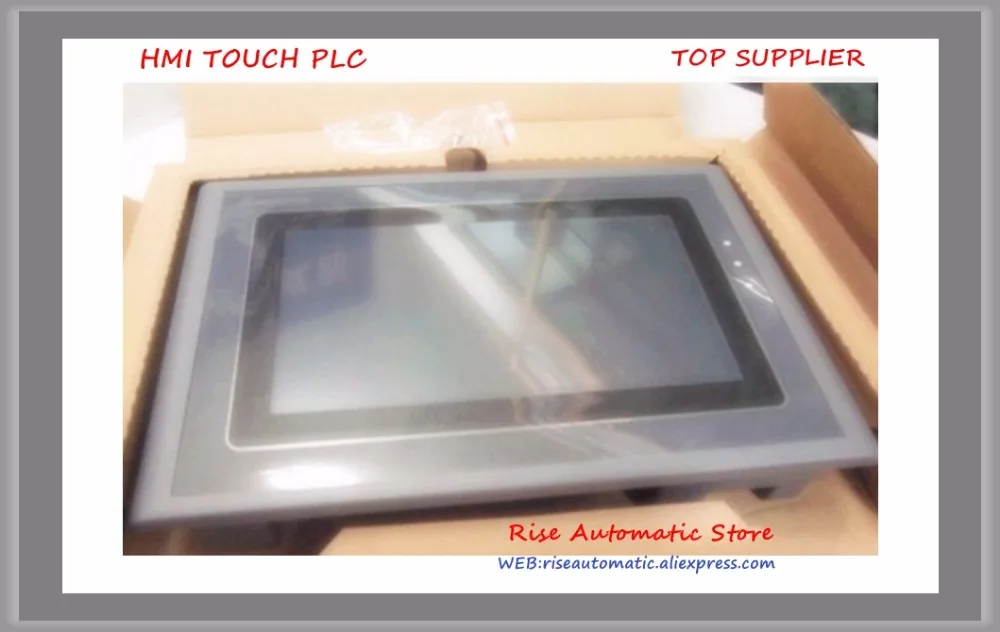

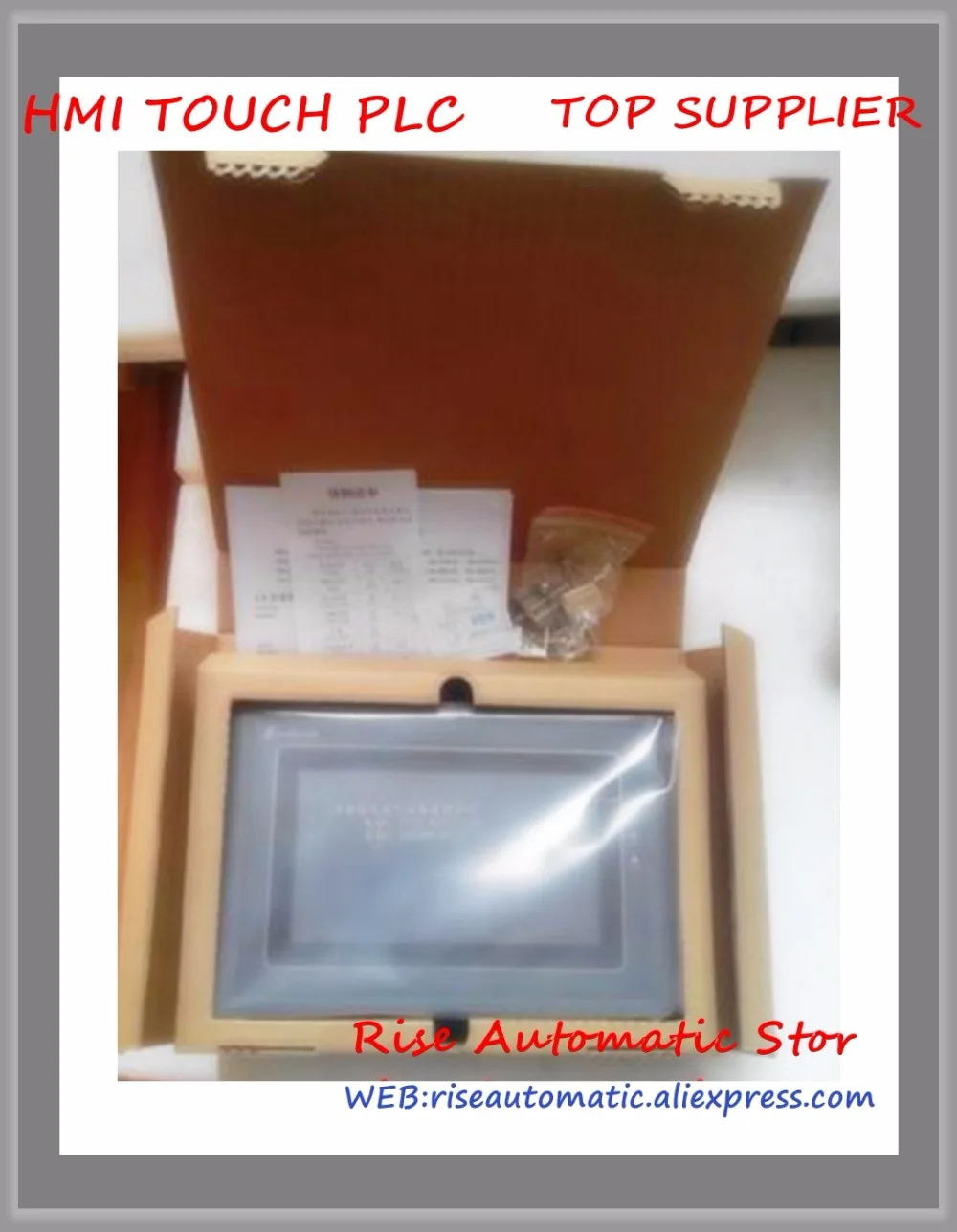

SK-070AS

HTB1a_KHQVXXXXboaXXXq6xXFXXXWHTB1tceZRXXXXXb0aXXXq6xXFXXX7

Product brief introduction

260,000 color, 2 COM( RS232, RS422, RS485), 1 USB download port (USB device), 1 USB port(USB host), 1 Ethernet port and 1 card port.

Detailed Specifications

SK-070AS Key Technical Parameters

Model

SK-070AS

Display Size

7”(length : width=16:9)

Resolution

800 x480

Brightness

450 cd/m2

Contrast

400 : 1

color

262, 144 color

Backlight

LED

Control panel

4-wire high-precision electric resistance touch screen

COM

COM1 (RS232, RS422, RS485) and COM2 (RS232, RS422, RS485)

USB download port USB Device

YES

USB port USB Host

YES

Ethernet port

YES

card

YES

Storage

128M FLASH + 64M SDRAM

CPU

32-bit 400MHz RISC

Supply power

DC: 24V (±15%),10W

6

6W

FCC compatibility

FCC, Class A

Pressure-proof test

1000V AC / per minute

CE certification

EN55022 EN55024

Operation temperature

-10~650

Operation humidity

10~90%RH( no condensation)

Shockproof degree

10-25Hz( X Y Z dimension 2G/30 minutes)

Level

IP65( front panel)

Curst material

Engineering plastic ABS + PC

External size

228x 154x 41 (mm)

Installed portiforium size

211x 145(mm)

weight

About 1.5kg

Configuration software

SKWorkshop
